Carton automatic gluing machine design and manufacture for printing, slotting, folding, bonding and stacking. It has the ability to carry, apply glue, fold, and form several layers automatically. PLC control, touch screen operation and pre - storage and management of orders. Its high speed production capacity, rapidly changing orders and good stability can meet our carton customers' requirements for shorter and shorter lead times.

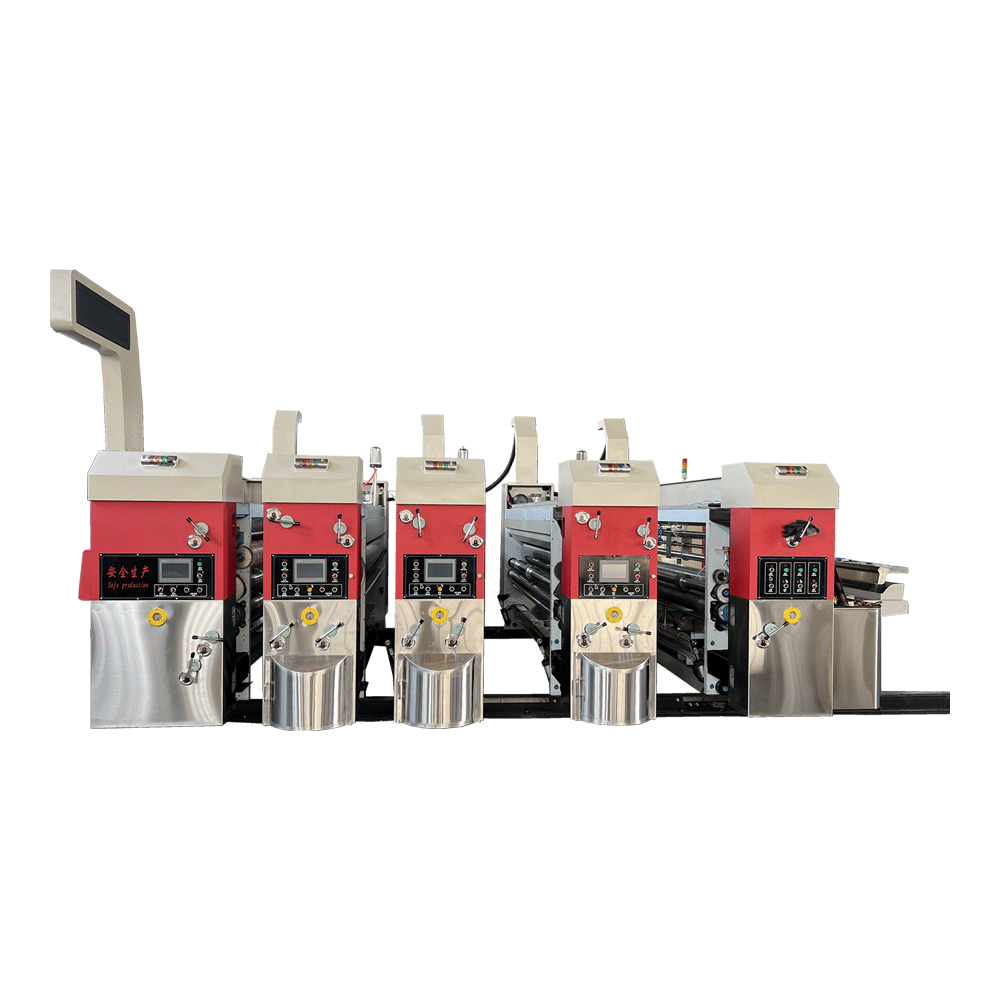

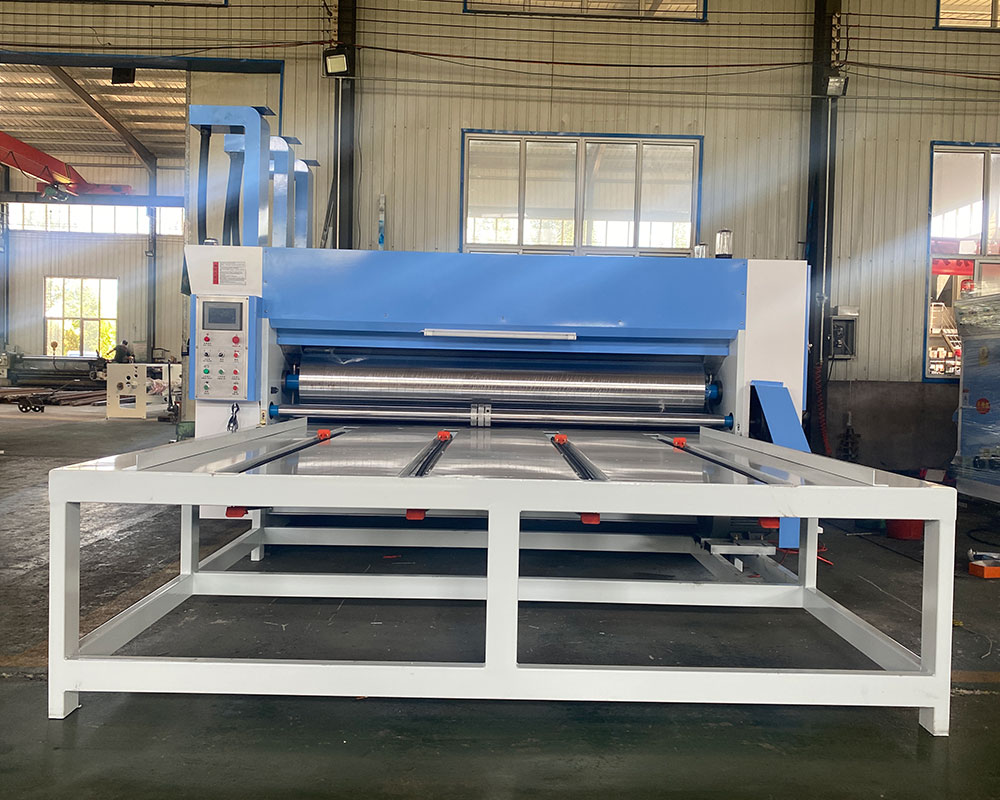

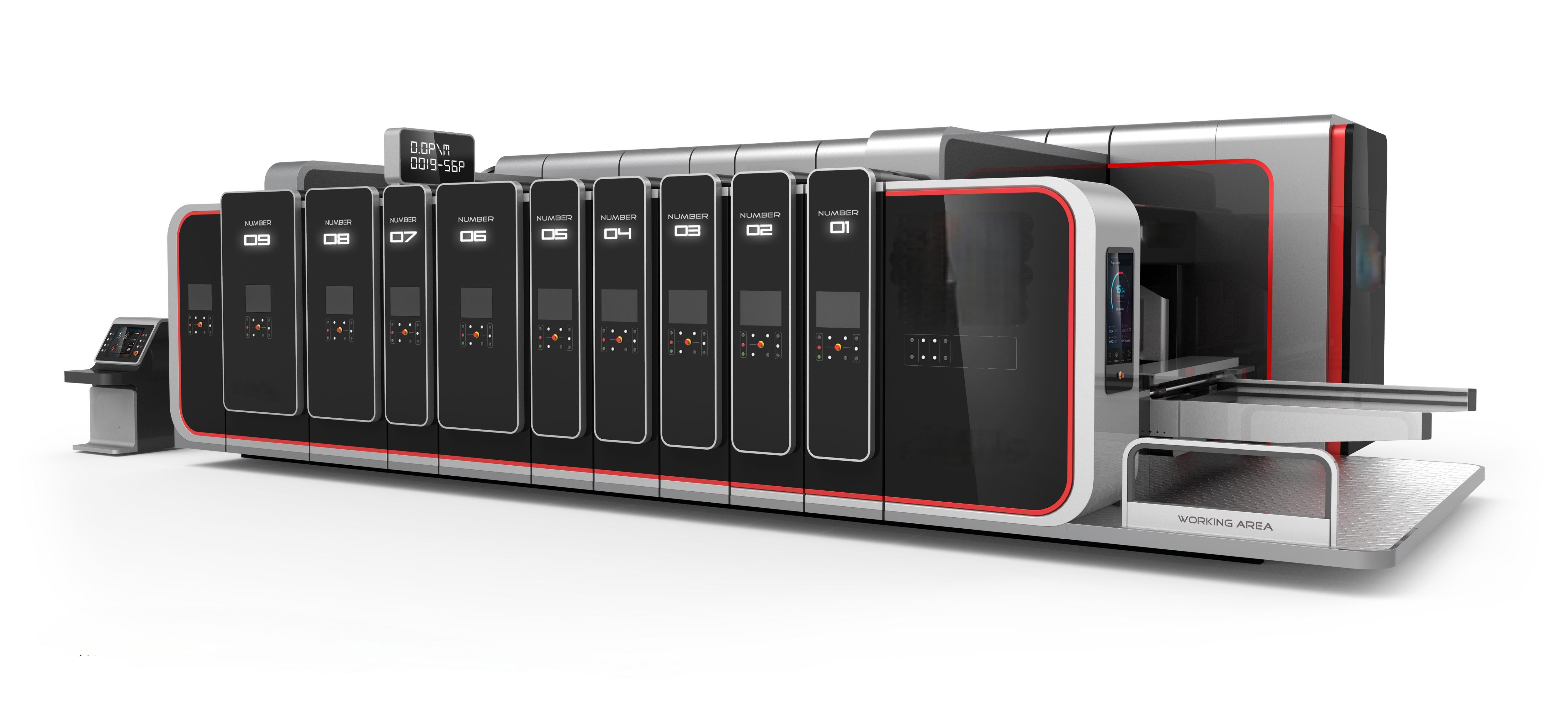

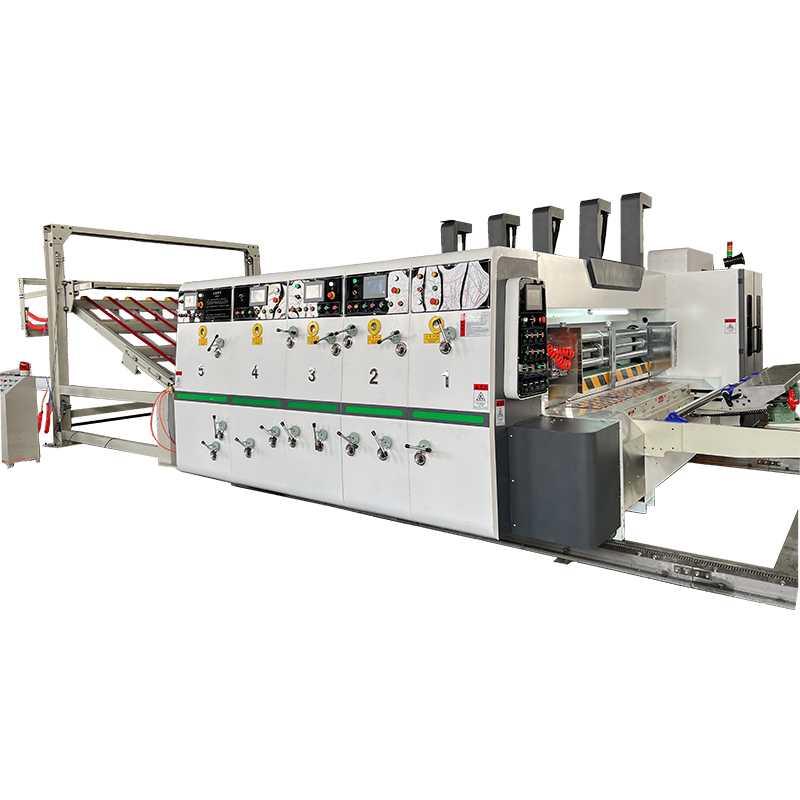

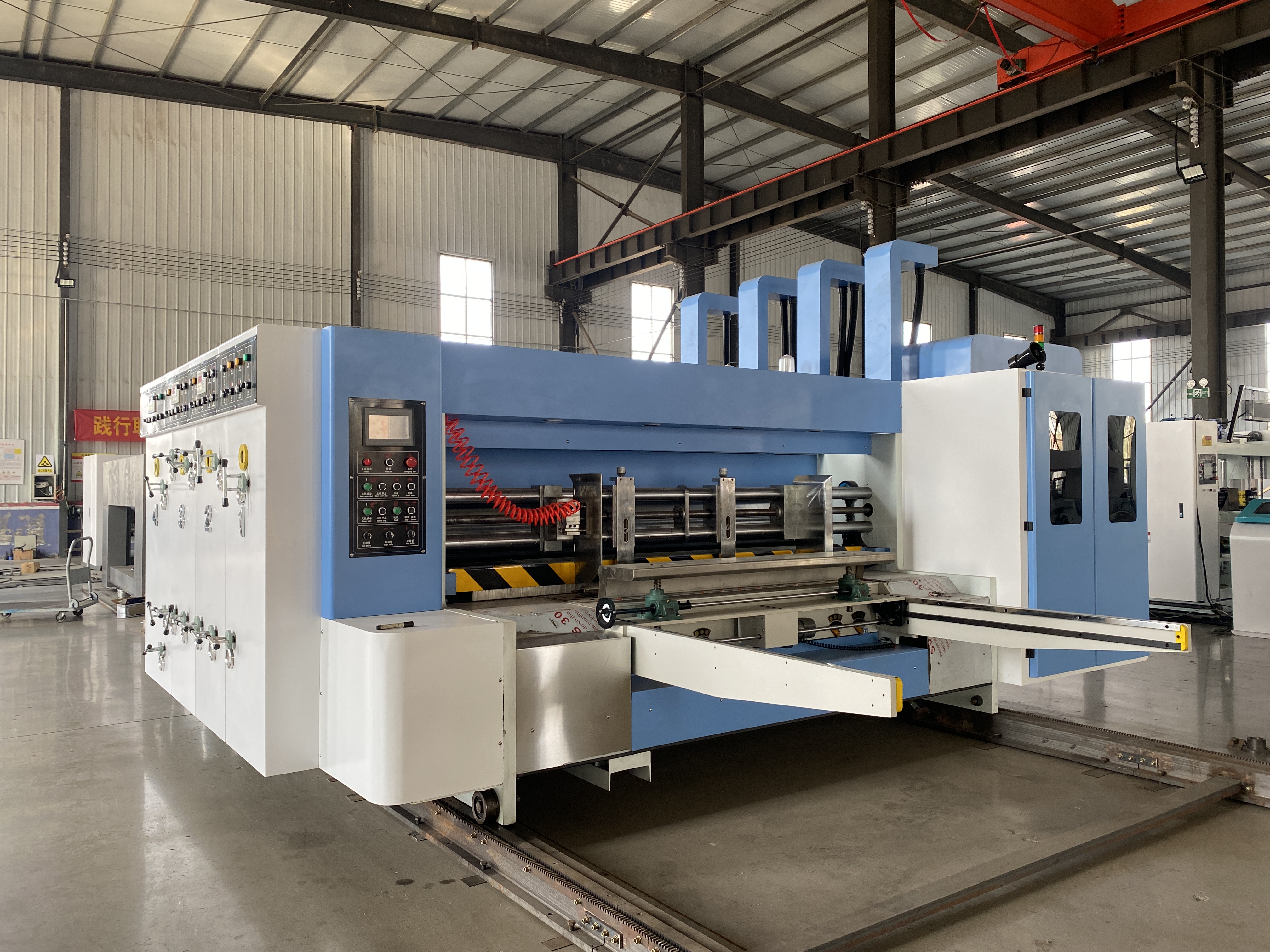

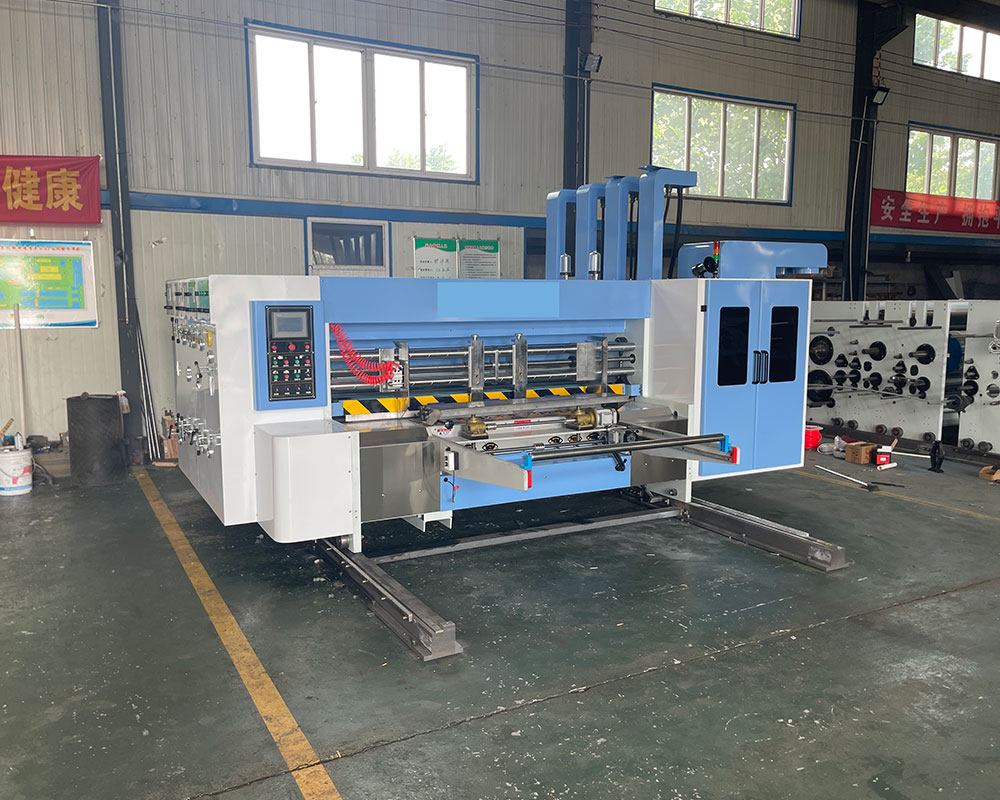

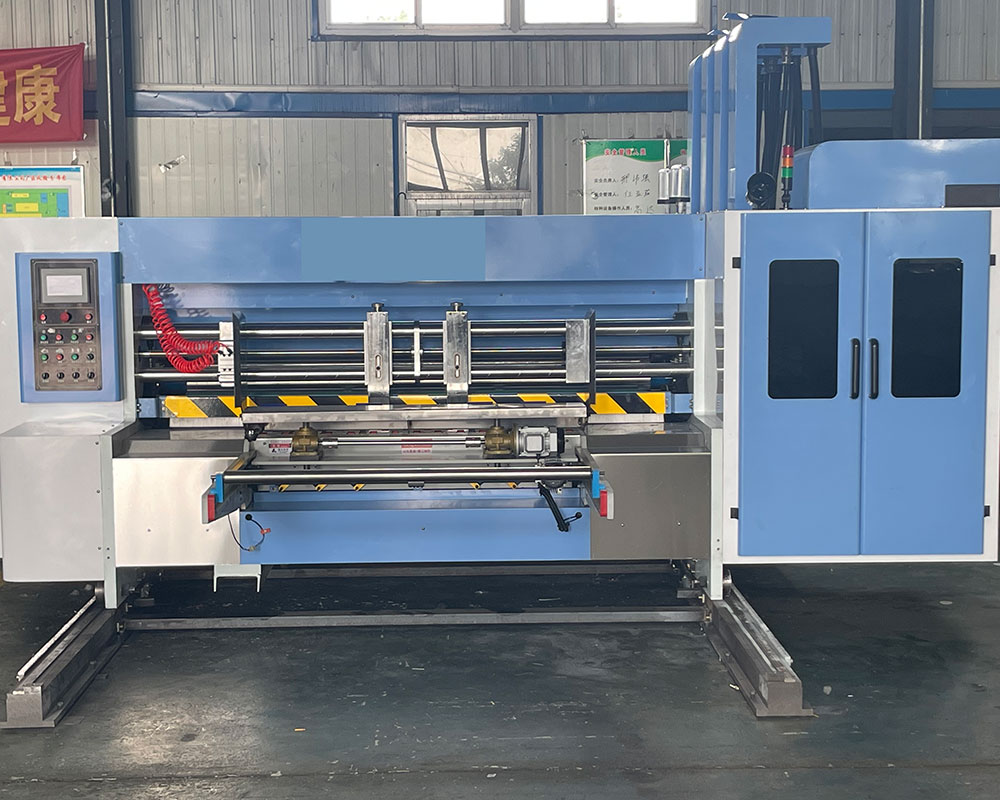

• Designed according the high request and the reliable function, the operation of the machine is humanization, can accomplish the setting, revision, implement, replacing and memories function in a shot time, and display with a exact data. • All the drive rollers adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish. • The drive gears adopt high quality alloy steel, after heat treatment and lapping finish. • The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing presicion. • Lubricate oil automatic balance device, keep the equal oil level equal in each unit. • Use sun feeder for feed the cardboard. • Customer can chose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chosed accord the customer use.

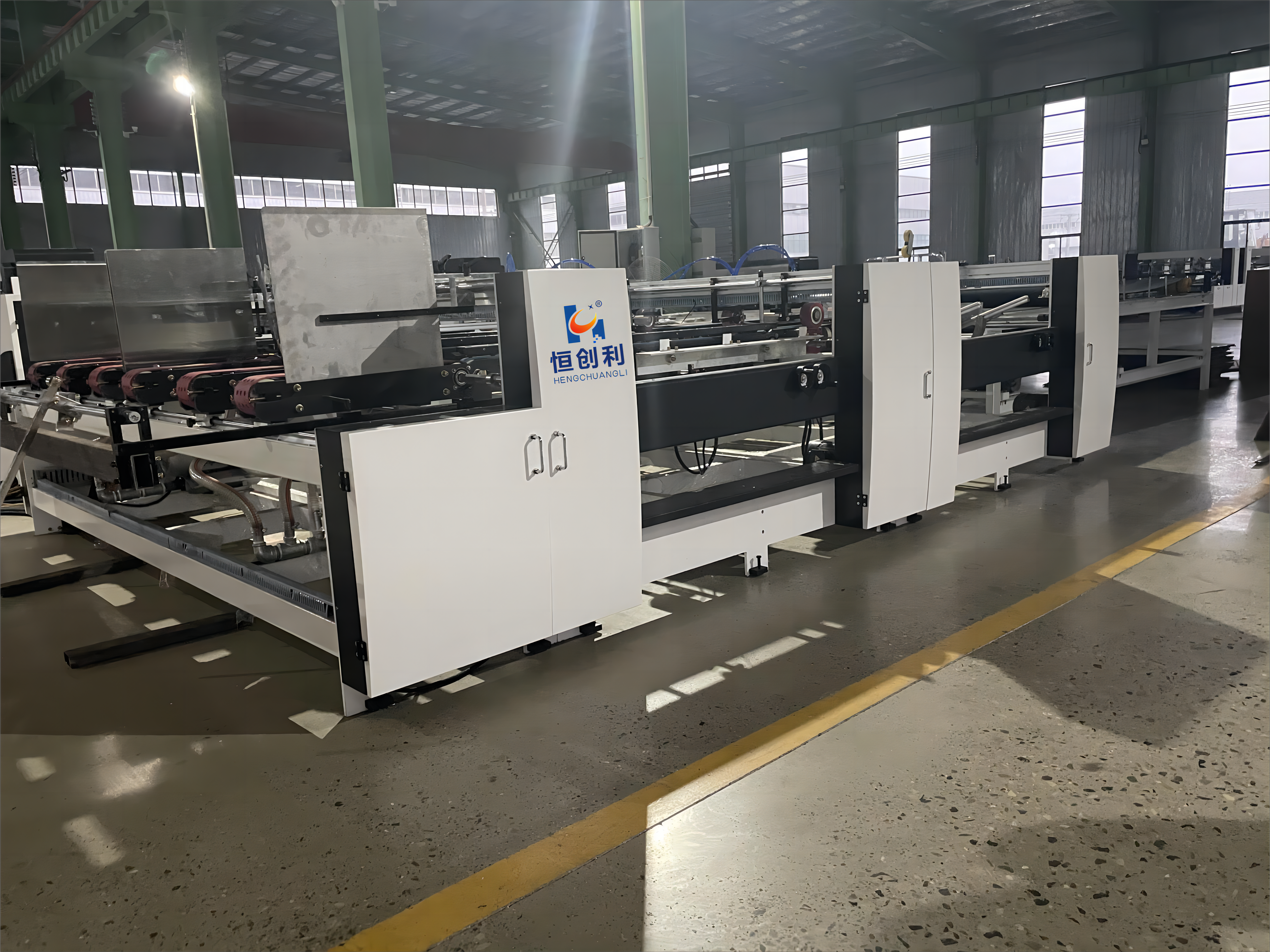

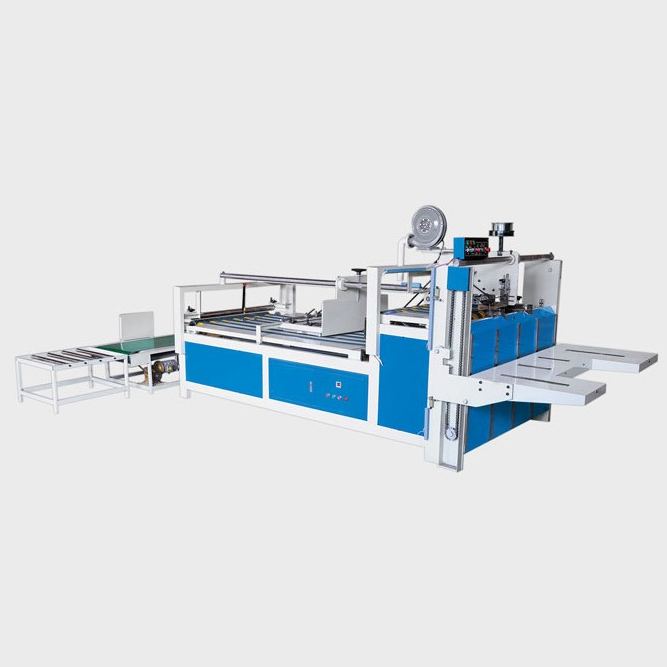

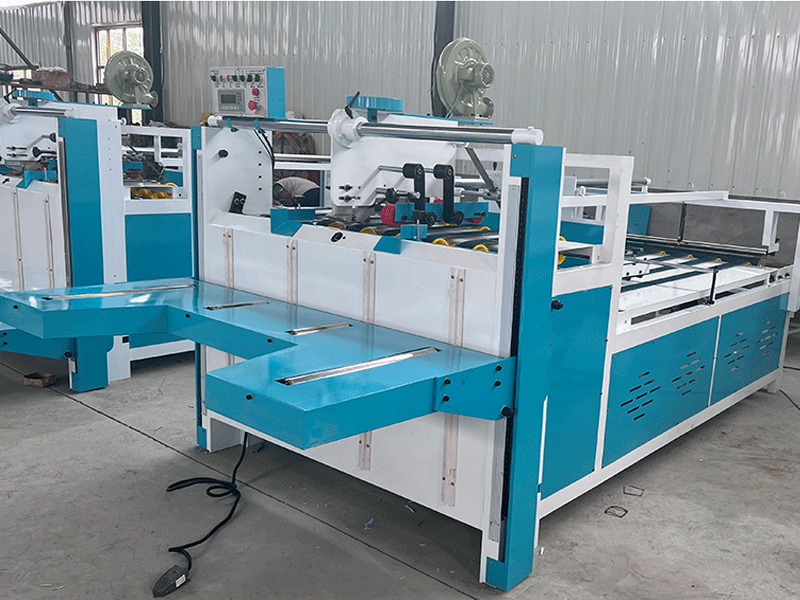

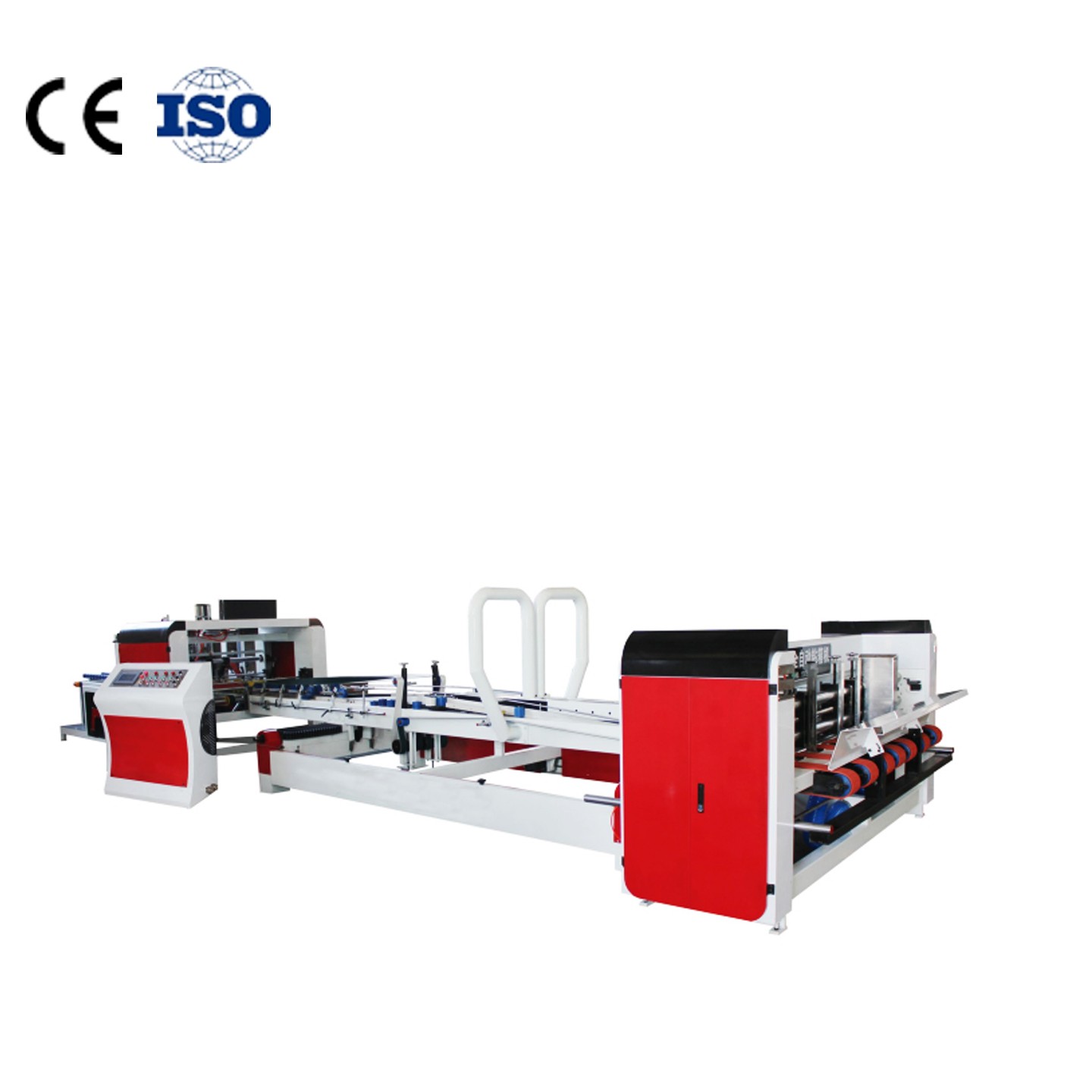

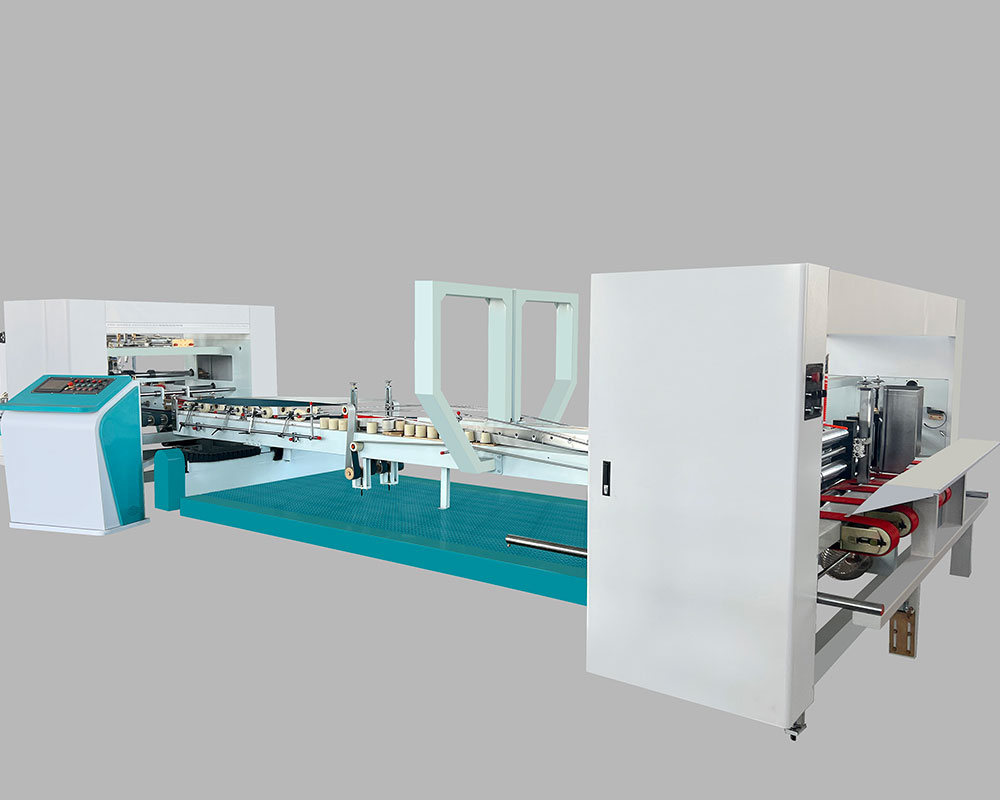

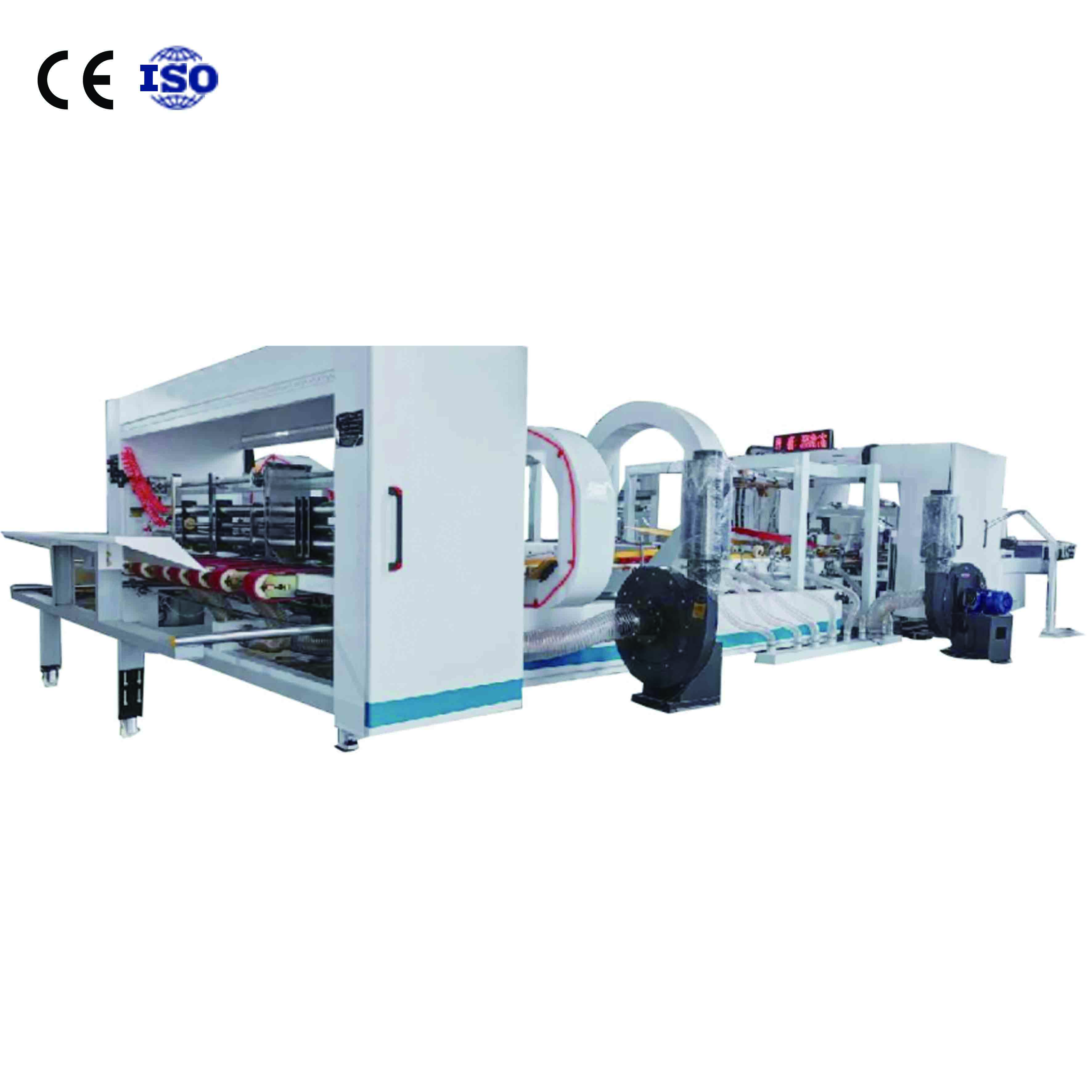

QzX seres Automatic folder gluer machine consiste of three sections vacuum feeding section.glue& floding secton, counter& stacker section Frequency conversion motor inverfer ad ust speed. plc& Touch Screen control system for easy operation and running stable.a min. Energy Conservation and High Speed, Saving Labor Cost

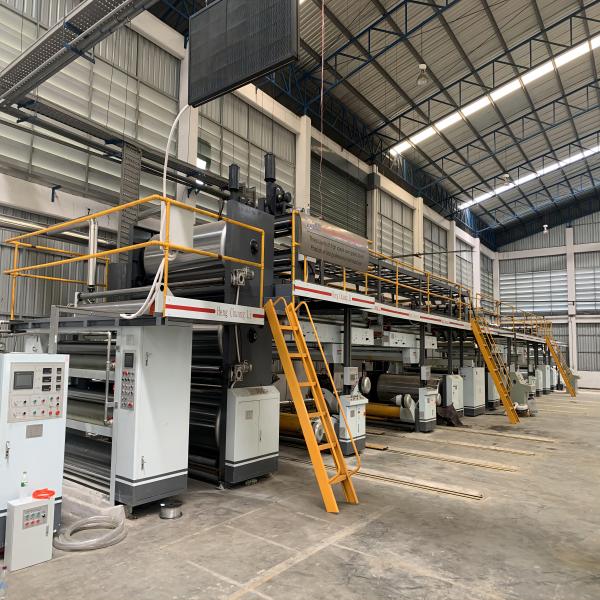

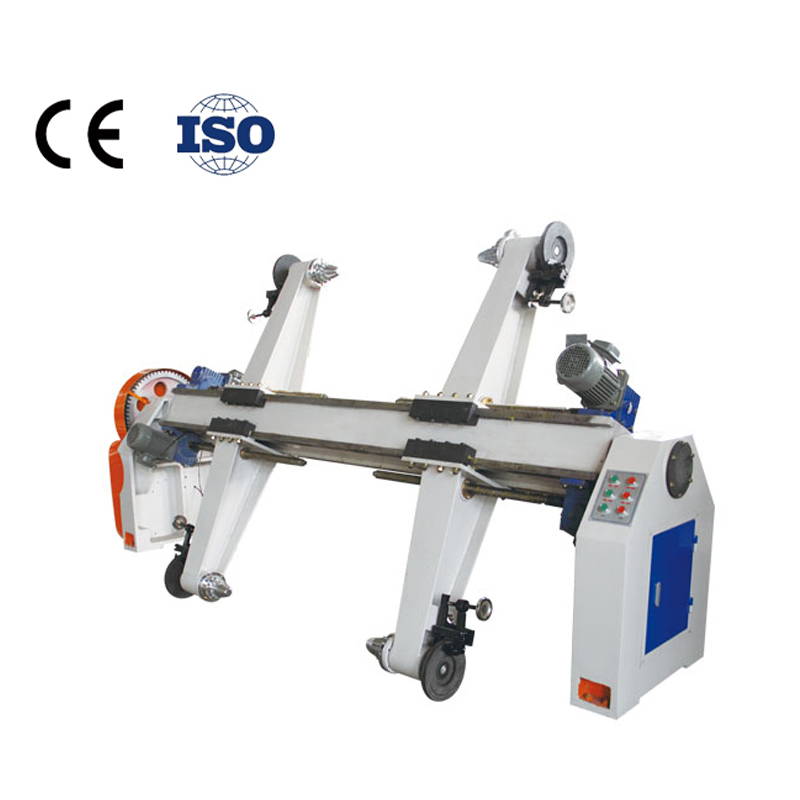

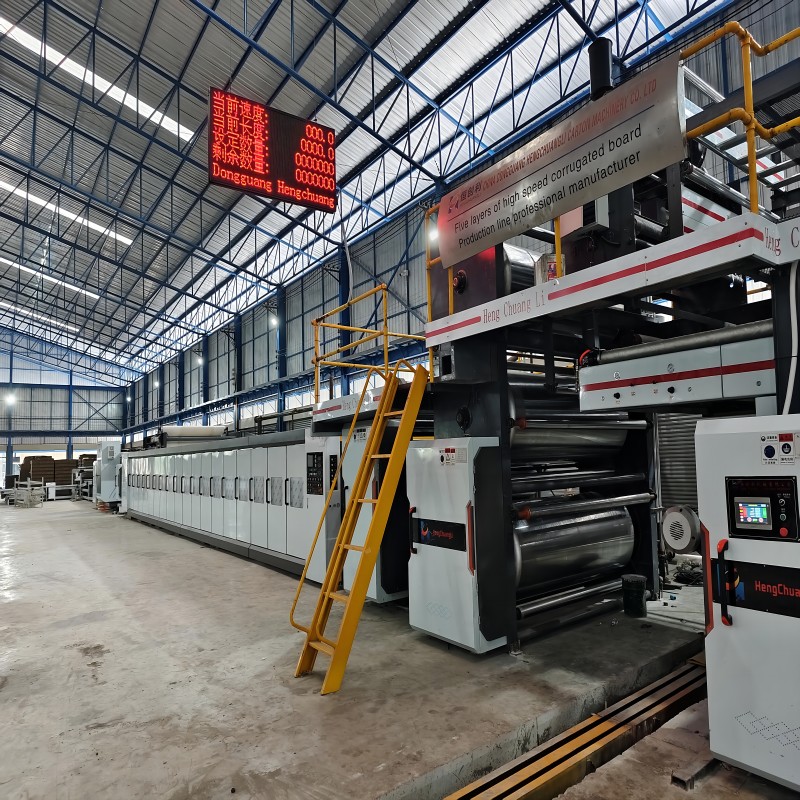

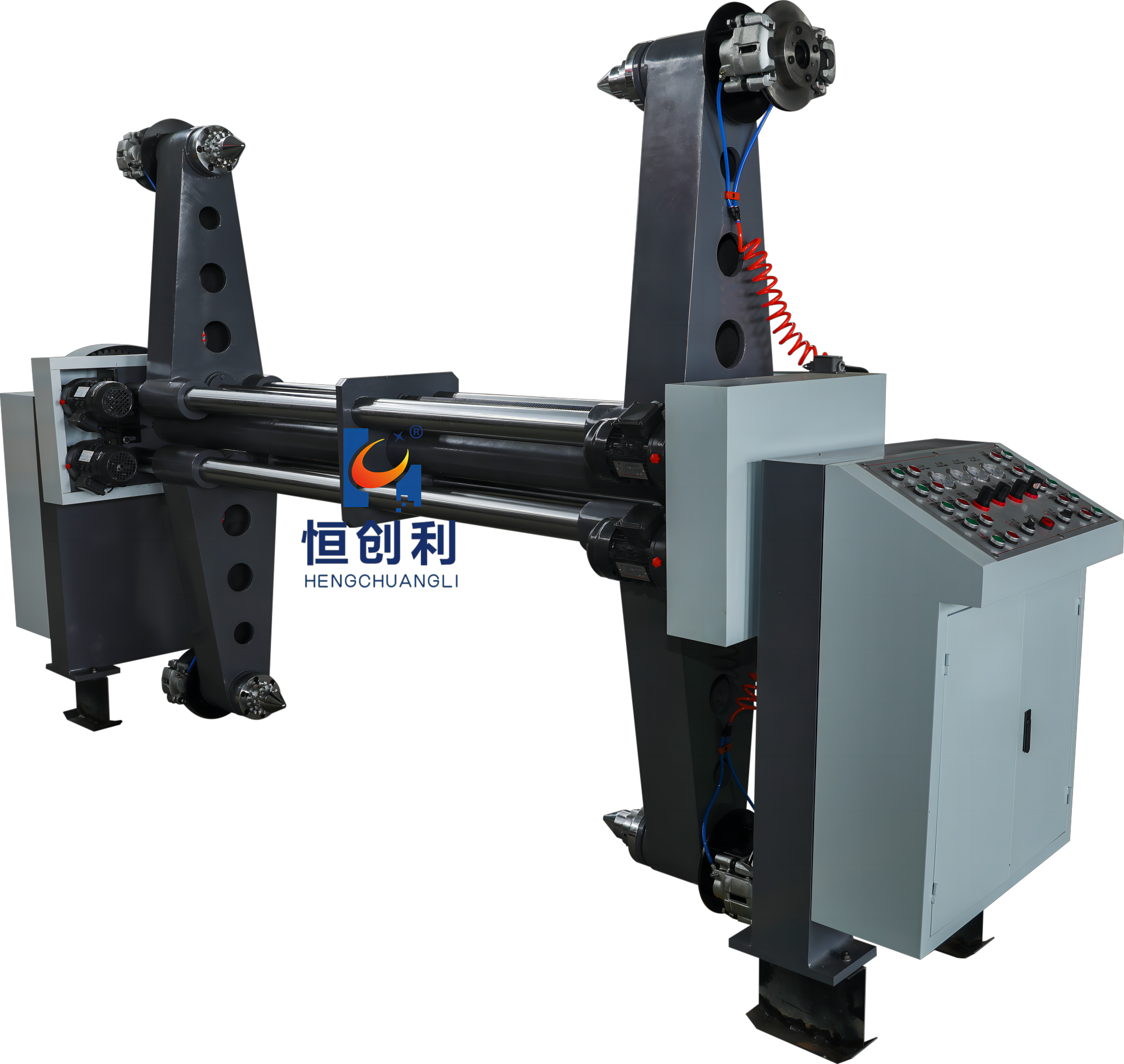

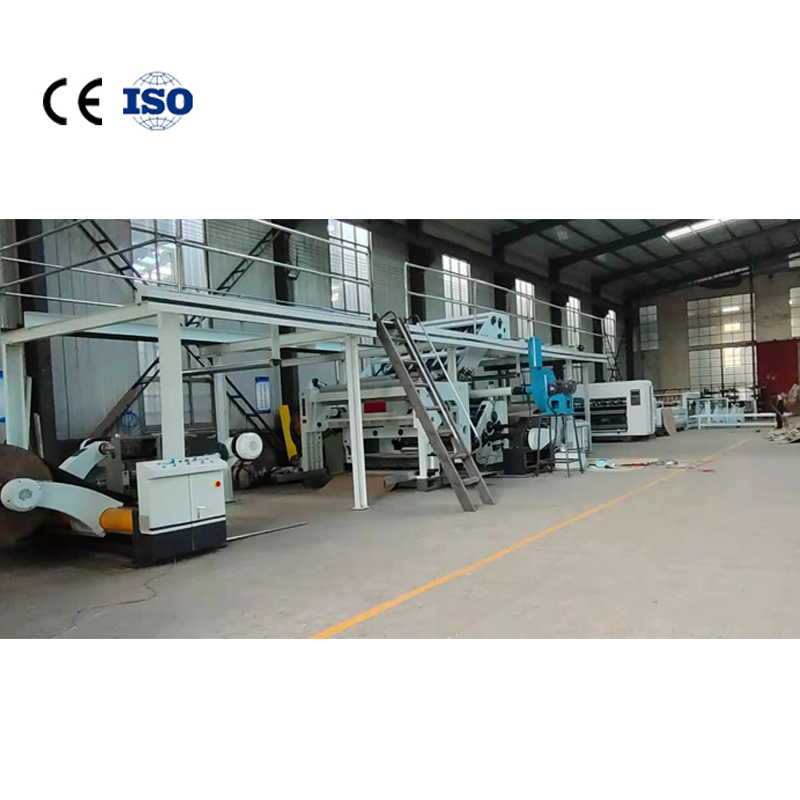

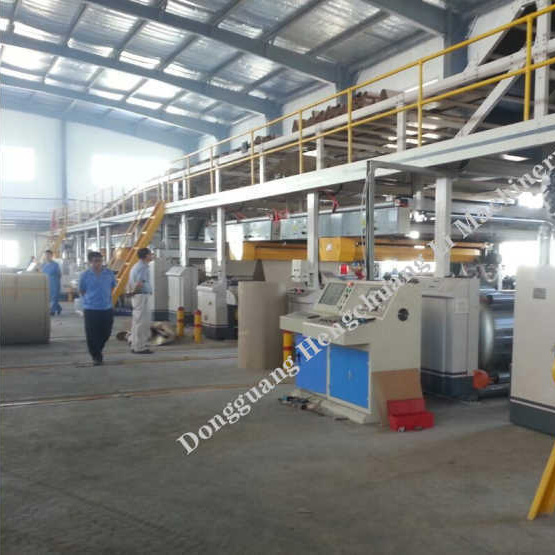

Product Attributes Width: 1400 - 2500 mm. Speed: 60 m - 200 m/minute. Details Attributes The 3 layer, corrugated cardboard production line mainly consist of the following equipments: mill roll stand, pre-conditioner, pre-heater, auto-splicer, single facer, conveying bridge, multi-ply pre-heater, duplex glue machine, double facer, slitter scorer, cutoff, conveyer and stacker, glue making system and electric control system etc.

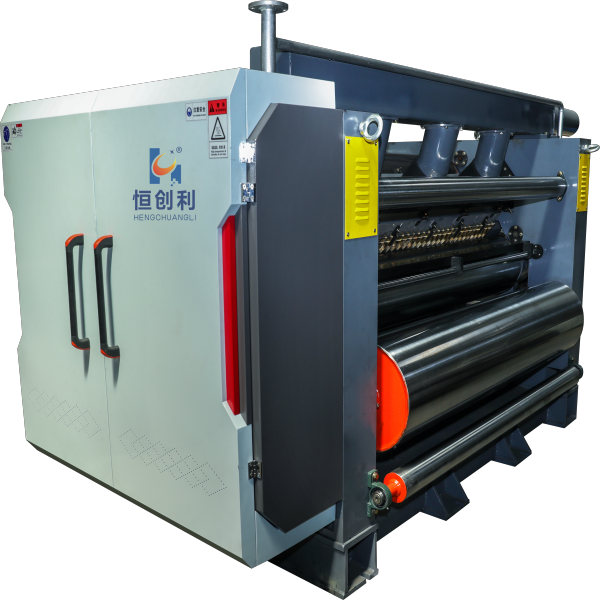

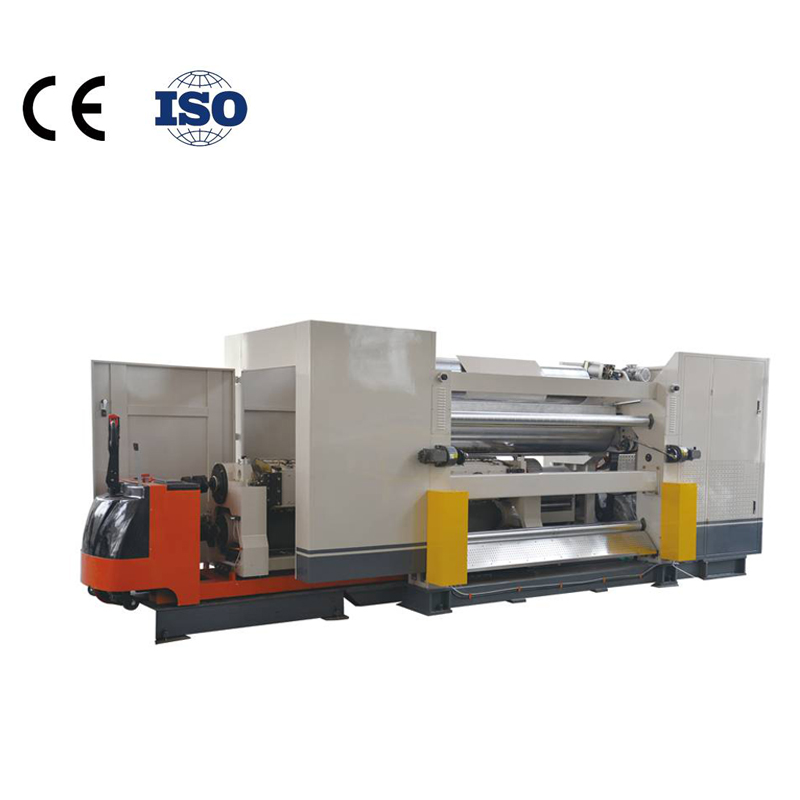

Design speed: 150 m/min-200m/min. Effective width: 1400-2200 mm. Negative pressure design, low heat dissipation, so that the pressure can evenly bond the core paper and the surface of the corrugated roller, so that the corrugated shape is better, because the pressure is even, the corrugated top is better, and the glue is uniformly applied, which makes the single-sided bonding of the corrugated better . Quick roll change, 15 minutes, in order to replace the cart trailer containing a complete set of corrugations, it is driven by a motor, loaded into the machine, fixed on the machine base, and the corrugation can be replaced quickly and easily. The corrugation is made of 48CRMO high-quality alloy steel, heat-treated, and the surface is grinded and plated with hard chromium or tungsten carbide.

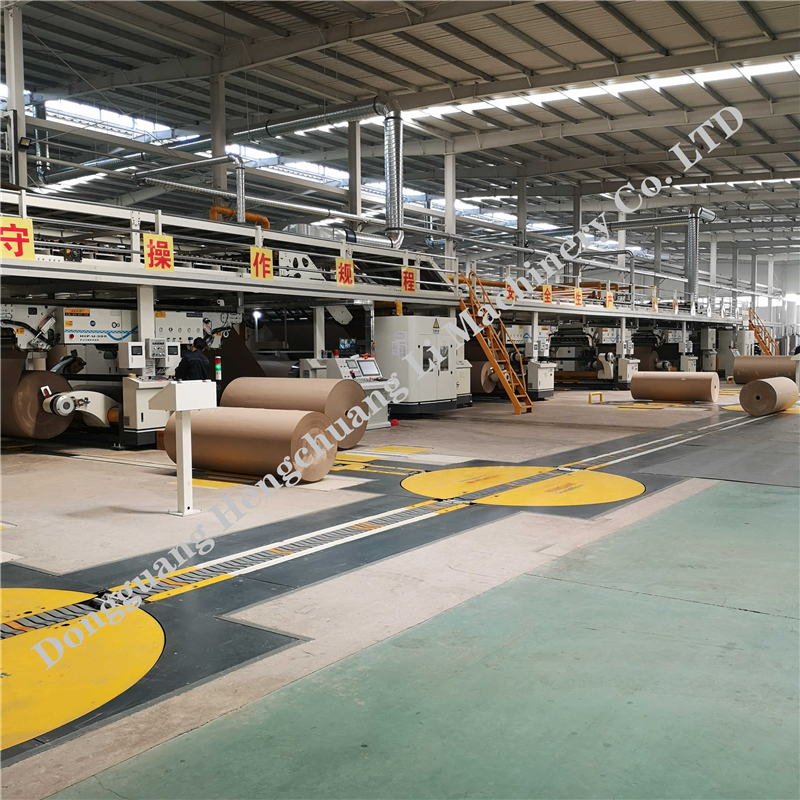

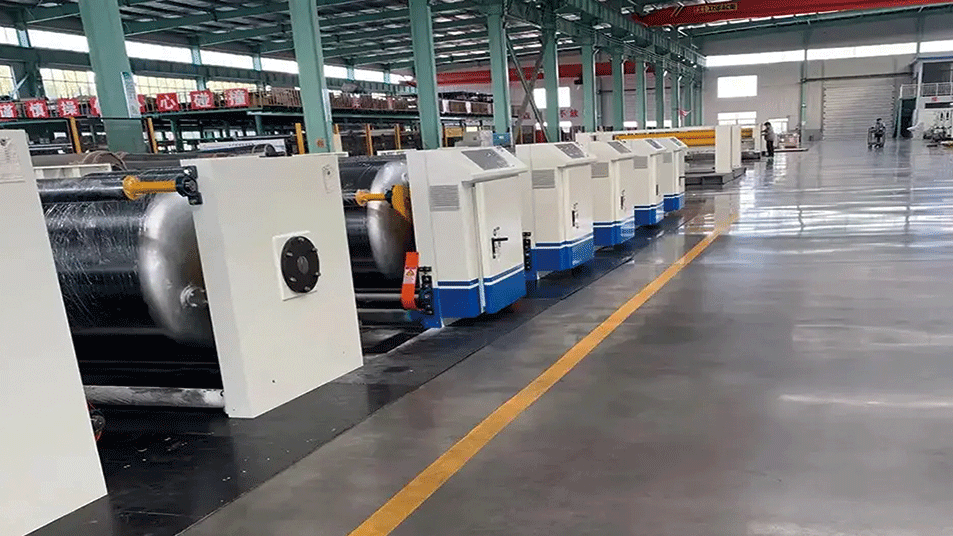

Width: 1400 - 2500 mm. Speed: 60 m - 200 m/minute. Corrugated paperboard production line makes paper reel into paperboards, which are later used for producing corrugated boxes. A modern corrugeted paperboard production line is complete automatic. corrugating production line can produce 3, 5 corrugated paperboards of flute type A, C, BC, B, E or combinations. Stable working speed is classifyed as 150 m/min, 200 m/min, or 250 m/min. Web width extends from 1400mm to 2500 mm.

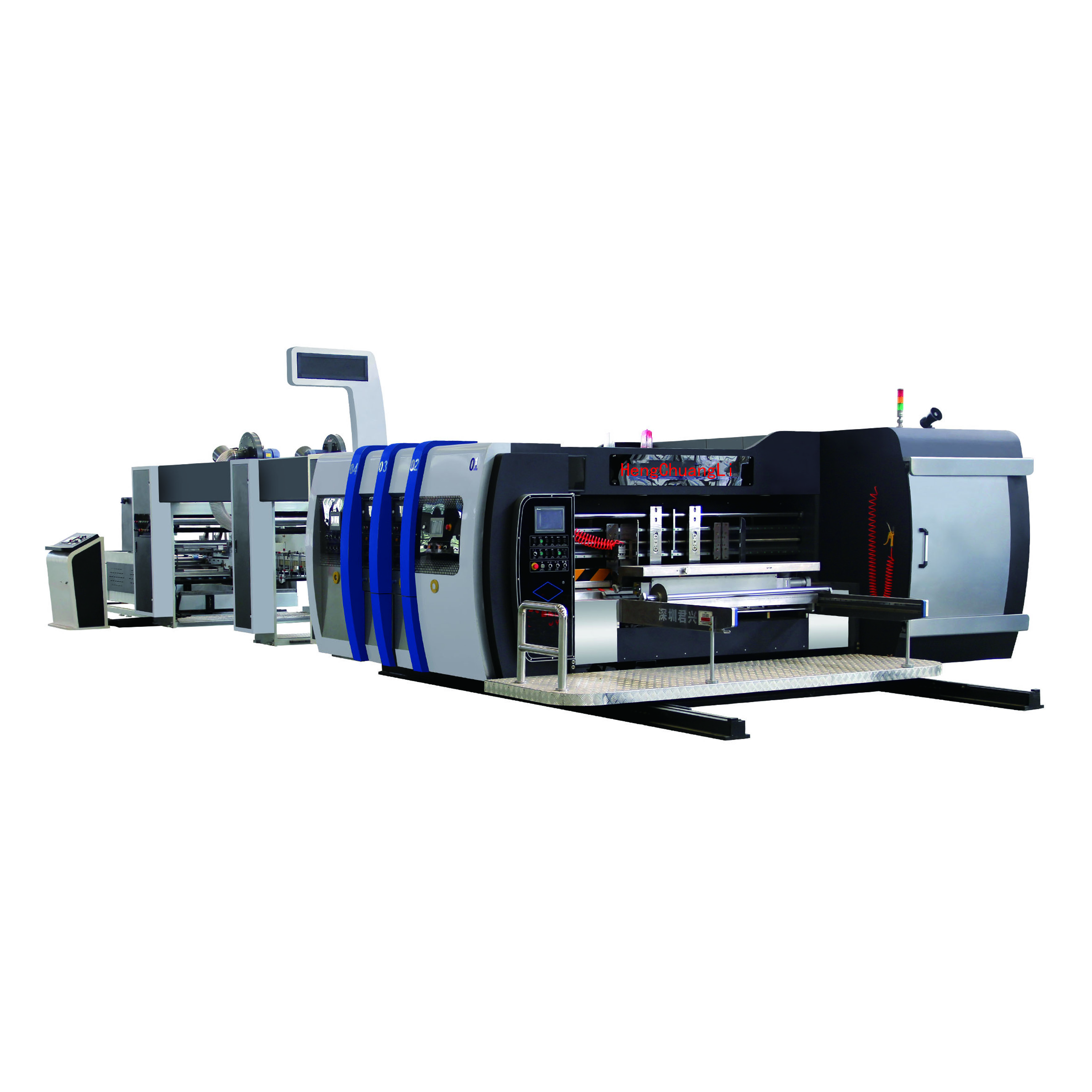

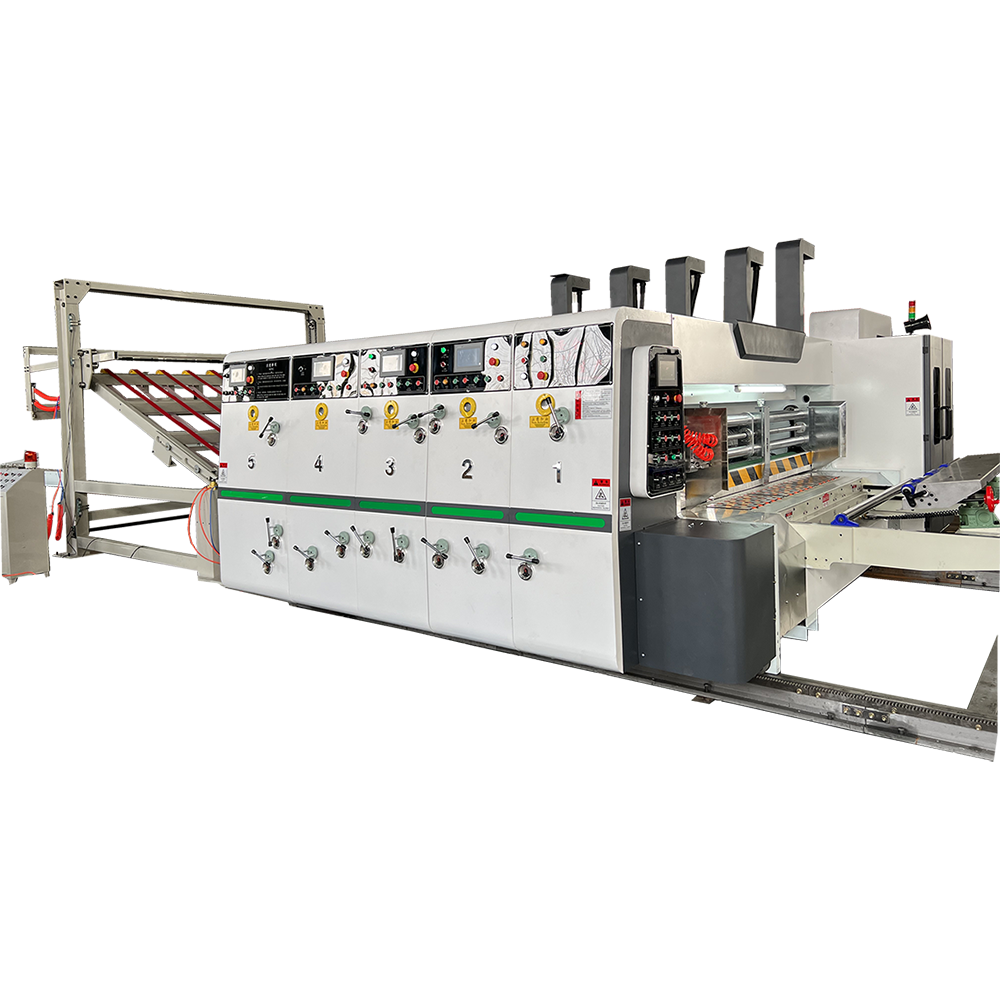

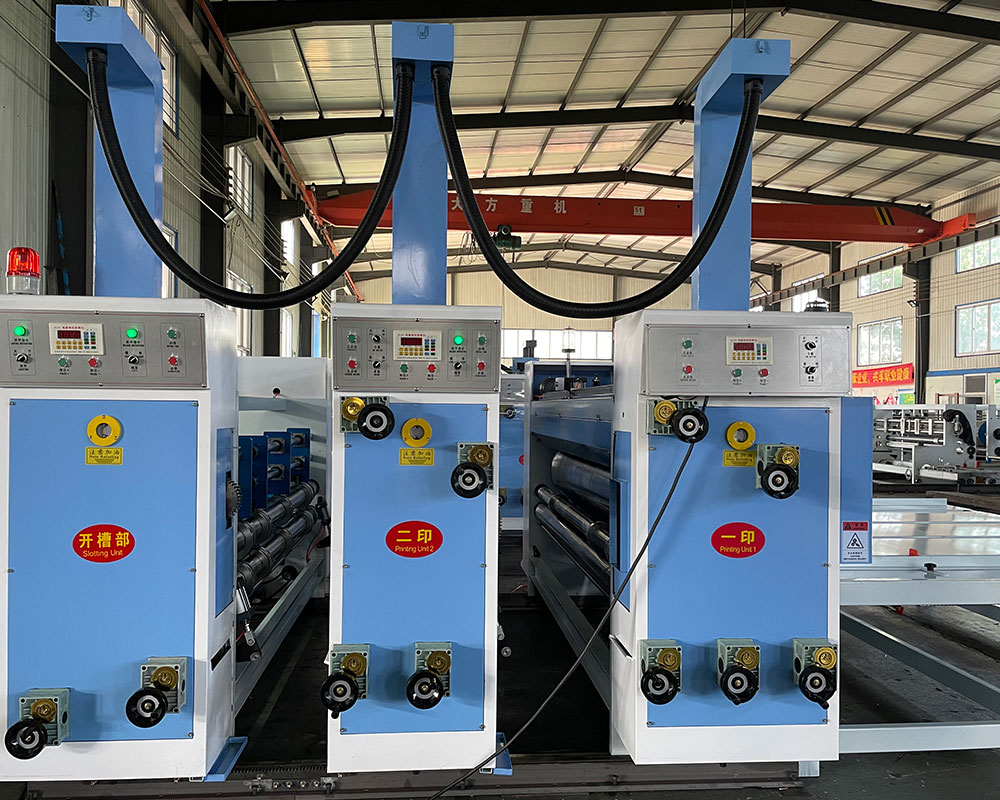

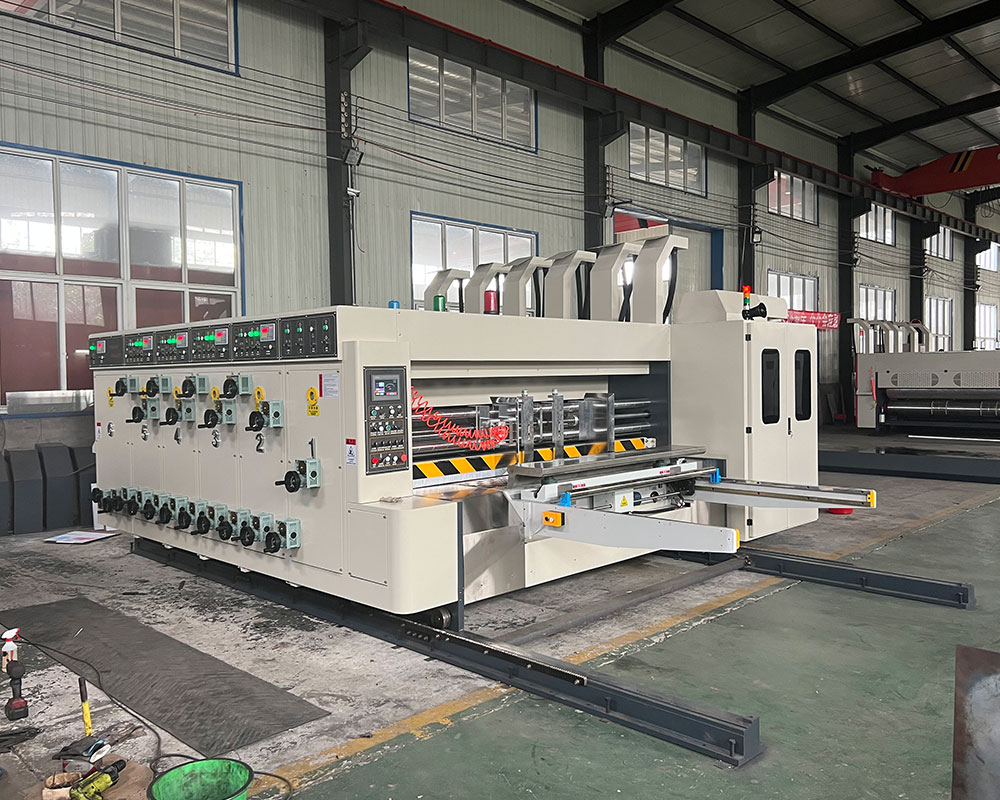

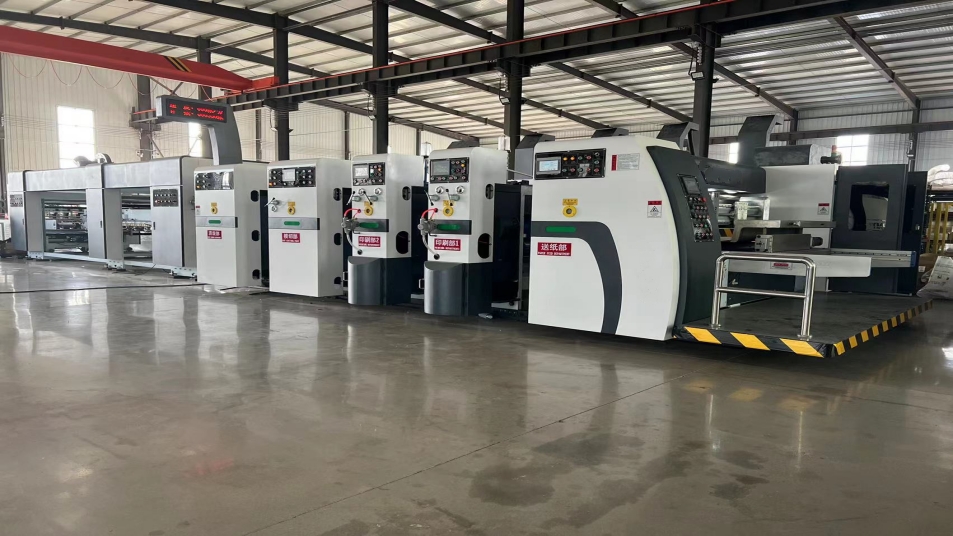

The whole machine is designed according to the high demand, reliability function and safety production. Full-automatic and high speed, PLC controlled. Selects the high quality materials and accessories, all the drive rollers adopted high quality steel material of famous brand, hard chrome plating and surface treated by lapping finish. Transfer roller impression cylinder, the clearance of anilox roller is controlled by computer. Higher configuration series adopt full scale adsorption to make the output better quality.
